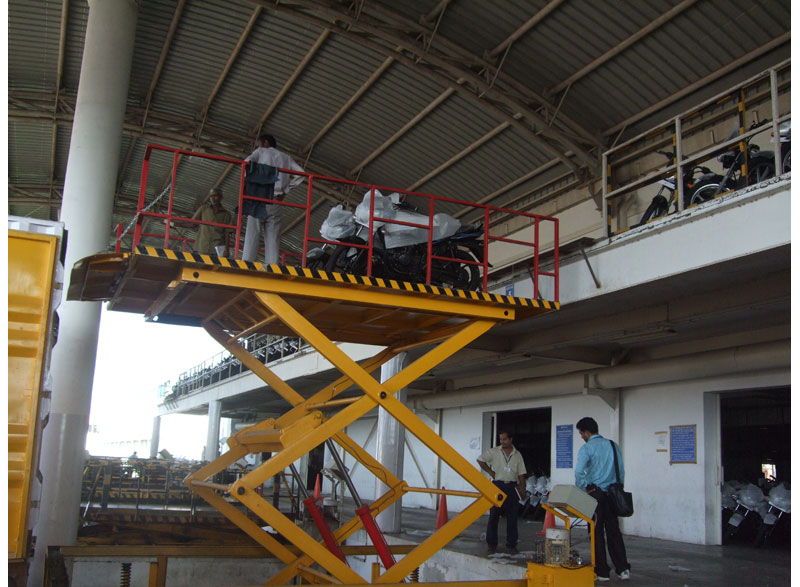

Two Wheeler Loading & Unloading Platform
Need this to a spec?
Send us the load, travel and footprint — we’ll come back with a configuration and a price.
Request a quoteTwo Wheeler Loading & Unloading Platform
Essem Engineers is one of the leading Two Wheeler Loading Unloading Platform Manufacturers & Suppliers in India. Our choice of Two Wheeler Loading Unloading Platforms is the result of intensive research and development as well as dedicated manpower. Our Two Wheeler Loading Unloading Platforms are built for use in major and hostile situations and have been designed for continuous, round-the-clock operations.
The hydraulic components used in Essem Engineers Two Wheeler Loading Unloading Platforms are chosen from the universal range and built using modern technology. The modular nature of these systems allows for easier production, installation, and maintenance because the parts are mounted.
We can manufacture these platforms based on the demands and specifications of our customers. Because of its excellent technological design, it offers exceptional lifting height for buildings and is robust in construction. Our Two Wheeler Loading Unloading Platform type is very dependable and highly functional, and customers can buy it in many sizes and capacities.
Essem Engineers understands that industries are continually evolving and expanding, so the demand for streamlined logistics and material handling solutions increases. Seeking requirements, we stand up front and develop these intuitive platforms that offer scalability, adaptability, and automation capabilities while handling a growing volume and variety of goods.
Specialized in the stream, Essem Engineers develops loading and unloading platforms that facilitate material handling operations by ensuring the safe transfer of goods. They are designed to provide a stable and elevated surface for loading and unloading activities. These platforms reduce manual labor, minimize the risk of accidents, and optimize workflow in industrial settings.
They enable the movement of goods, materials, and equipment between different levels or modes of transportation, such as trucks, warehouses, docks, and production facilities. These platforms come in various configurations, such as dock levelers, scissor lifts, conveyor systems, and pallet handling systems, which are tailored to specific usage requirements.
Our products are widely used for loading/unloading trucks, transferring goods between floors in warehouses, and integrating with conveyor systems for automated processes. In modern logistics and supply chain management, our equipment can accommodate diverse applications in industries to optimize their material handling processes.
At Essem Engineers, we manufacture our Loading Unloading Platform using superior-grade materials and sturdy structural components such as steel frames, platforms, ramps, dock levelers, safety rails, anti-slip surfaces, and hydraulic systems for elevation control. The features include a sturdy structure, and seamless transition between trucks and loading bays, for secure footing and preventing accidents, Moreover, our platforms incorporate conveyor systems for efficient material transfer, scissor lifts for vertical movement, and automated controls for ease and functionality enhancement. These components and features optimize material handling processes, ensure worker safety, and maximize efficiency in various industrial settings.
Choose Essem Engineers as one of the trusted Loading Unloading Platform Manufacturers . Find a range of diverse products and discover the preferred choice of loading and unloading solutions for business growth.
Specifications
- Minimum closed height
- 120 – 250 mm
- Loading capacity
- 200 kg
Salient features
- Enhance efficiency in material handling operations
- Minimize the accidental and injury risks during material handling
- Improve the workflow of logistics processes
- Reduce manual labor engagement and costs
- Versatile and adaptable to various applications and industries
- Automation-integrated technologies for enhanced performance
- Power pack-Oil grades SAE 30/40 Unit
- Variety of models - stainless steel top, MS top, electrically controlled, manually controlled, hydraulic or pneumatic
Two Wheeler Loading & Unloading Platform — common questions
A hydraulic scissor lift raises a platform on crossed steel arms driven by one or more hydraulic cylinders. Oil pushed into the cylinder forces the arms towards vertical and the deck rises straight up, with no swing and no overhead structure. Lowering is done by metering that oil back out, so the descent stays controlled under load.
Start with the heaviest thing that will ever sit on the deck, then add whatever carries it: the pallet, the cage, the trolley, the operator. That total is the safe working load, and it should sit inside the rating with room to spare rather than right at the edge of it. Where the load sits matters as much as what it weighs, so tell us if it lands off-centre or rolls on from one end.
A pit lets the deck finish flush with the floor, so pallet trucks roll straight on and nothing has to be lifted over a lip. The trade is civil work and a commitment to that spot. Floor-mounted units need no excavation and can be relocated later, but you live with the collapsed height and usually want a ramp. Where flush loading is needed without a deep pit, a zero-level table is the middle path.
We do not publish prices, because a 200 kg two-wheeler platform and a 6000 kg showroom car lift are not the same conversation. Cost follows capacity, travel, platform size, control specification and whether the site needs civil work. Send us those five things and you get a real figure back instead of a range that means nothing.
Almost everything that leaves the works is built to order. Platform size, travel, capacity, control voltage, deck finish and guarding are specified per job, which is why the catalogue lists ranges rather than fixed models. If the machine you need is not on the site, that is normal. Describe the duty and we will size it.
Car lifts are supplied with a 220 / 440 / 24 V control system as standard, with the 24 V side handling the pendant and landing controls. Other machines are configured to the supply available on site, single or three phase. Some platforms are offered battery-powered or hand-pump operated where no supply is practical.
Essem Engineers holds ISO 9001:2008, which certifies how we manufacture rather than stamping an individual machine. In practice that means documented material sourcing from certified vendors, and inspection at each stage of production instead of a single check at the end. Machines are tested under load before despatch.
Yes. We take work from concept through to commissioning, including the drawings, fabrication, installation and handover, and we support the unit afterwards for the rest of its working life. Several of the installations in our gallery were fitted into live showrooms and running plants, around the customer’s working day.
We have installed more than 375 plants across India and abroad, from three units in Delhi NCR: a head office in Keshav Puram and works at Maya Puri and Bahadurgarh. Customers include the Indian Air Force, Maruti Suzuki, Honda, Jaypee Group and Dass Hitachi.
Less than most people expect, which is much of why they last. The routine is oil level and condition, hoses and fittings checked for weeping, pins and bushes greased, and the scissor path kept clear so nothing gets trapped as the arms close. Anything beyond that is usually a symptom rather than a schedule, and worth a call.
That depends on the specification and on your site. A standard-size lift table moves faster than a multi-landing goods lift that needs a pit dug and a shaft framed. We will give you a date with the quotation rather than a stock answer, and it will account for the civil work if there is any.
Send us the load, travel and footprint. We’ll send back a drawing.
Most of what we build is made to order. Share your application and our engineers will come back with a configuration, a capacity and a price.
