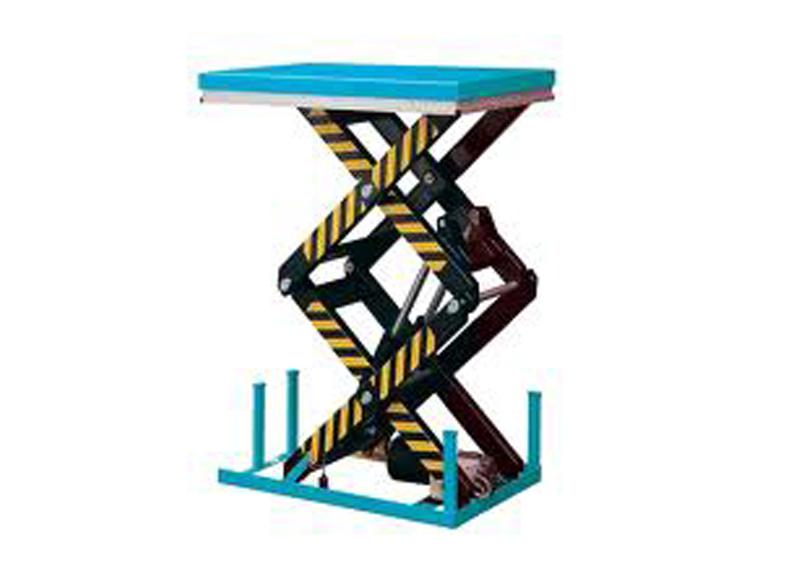

Hydraulic Scissor Lift Table

Start with the heaviest thing that will ever sit on the deck, then add whatever carries it: the pallet, the cage, the trolley, the operator. That total is the safe working load, and it should sit inside the rating with room to spare rather than right at the edge of it. Where the load sits matters as much as what it weighs, so tell us if it lands off-centre or rolls on from one end.

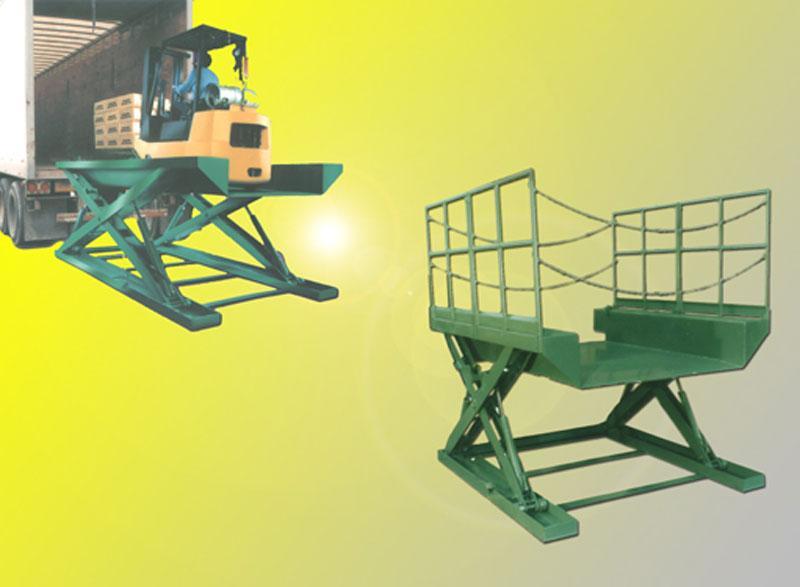

A pit lets the deck finish flush with the floor, so pallet trucks roll straight on and nothing has to be lifted over a lip. The trade is civil work and a commitment to that spot. Floor-mounted units need no excavation and can be relocated later, but you live with the collapsed height and usually want a ramp. Where flush loading is needed without a deep pit, a zero-level table is the middle path.

It depends on the machine. Car lifts are built from 200 mm up to 8000 mm of travel, stacker lifts to 4000 mm, and zero-level tables raise to 2000 mm. Traction lifts run at speeds to 1.0 m/s with capacities from 380 kg to 2000 kg. Past the standard range we build to drawing, so the limit is usually the building rather than the lift.

We do not publish prices, because a 200 kg two-wheeler platform and a 6000 kg showroom car lift are not the same conversation. Cost follows capacity, travel, platform size, control specification and whether the site needs civil work. Send us those five things and you get a real figure back instead of a range that means nothing.

Almost everything that leaves the works is built to order. Platform size, travel, capacity, control voltage, deck finish and guarding are specified per job, which is why the catalogue lists ranges rather than fixed models. If the machine you need is not on the site, that is normal. Describe the duty and we will size it.

Essem Engineers holds ISO 9001:2008, which certifies how we manufacture rather than stamping an individual machine. In practice that means documented material sourcing from certified vendors, and inspection at each stage of production instead of a single check at the end. Machines are tested under load before despatch.

Yes. We take work from concept through to commissioning, including the drawings, fabrication, installation and handover, and we support the unit afterwards for the rest of its working life. Several of the installations in our gallery were fitted into live showrooms and running plants, around the customer’s working day.

We have installed more than 375 plants across India and abroad, from three units in Delhi NCR: a head office in Keshav Puram and works at Maya Puri and Bahadurgarh. Customers include the Indian Air Force, Maruti Suzuki, Honda, Jaypee Group and Dass Hitachi.

Less than most people expect, which is much of why they last. The routine is oil level and condition, hoses and fittings checked for weeping, pins and bushes greased, and the scissor path kept clear so nothing gets trapped as the arms close. Anything beyond that is usually a symptom rather than a schedule, and worth a call.

That depends on the specification and on your site. A standard-size lift table moves faster than a multi-landing goods lift that needs a pit dug and a shaft framed. We will give you a date with the quotation rather than a stock answer, and it will account for the civil work if there is any.
